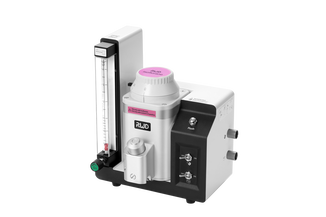

NEW TAIJI Small Animal Anesthesia Machine
The small laboratory animal anesthesia machine TAIJI is an upgraded model newly launched by RWD. The machine is ready to use right out of the box, no need for installation. The upgraded dual channel control makes animal experiment easier and faster to conduct.
Features:
- Integrated design and compact structure.
- Each vaporizer is independently debugged, with reliable quality and stable concentration output, independent of changes in flow, temperature, and pressure.
- The inclined design of oxygen flush button saves effort in pressing.
- Easy Fill dosing method with strong sealing performance.
- Optimized interface connection for smooth operation.
- Upgrade dual channels: independent switches for chamber and mask channels to improve experimental efficiency.
Specifications
Flowmeter specifications: 0-4L/min
Concentration range Isoflurane: 0-5%；Sevoflurane:0-8%
Concentration output accuracy: ±0.1（0-1％）；±0.15（＞1％）
Vaporizer capacity: ≥120ml
Operating temperature range: 10-35℃
Size: 260 x 220 x 300 mm
Order-Nr. combi-vet TAIJI
The small laboratory animal anesthesia machine TAIJI is an upgraded model newly launched by RWD. The machine is ready to use right out of the box, no need for installation. The upgraded dual channel control makes animal experiment easier and faster to conduct.
Features:
- Integrated design and compact structure.
- Each vaporizer is independently debugged, with reliable quality and stable concentration output, independent of changes in flow, temperature, and pressure.
- The inclined design of oxygen flush button saves effort in pressing.
- Easy Fill dosing method with strong sealing performance.
- Optimized interface connection for smooth operation.
- Upgrade dual channels: independent switches for chamber and mask channels to improve experimental efficiency.
Specifications
Flowmeter specifications: 0-4L/min
Concentration range Isoflurane: 0-5%；Sevoflurane:0-8%
Concentration output accuracy: ±0.1（0-1％）；±0.15（＞1％）
Vaporizer capacity: ≥120ml
Operating temperature range: 10-35℃
Size: 260 x 220 x 300 mm
Order-Nr. combi-vet TAIJI
|
|

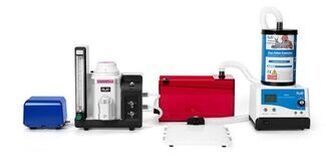

Also available om a Trolley with Induction Chamber and Gas evacuation unit
|
|
Following additional accessories are also available:

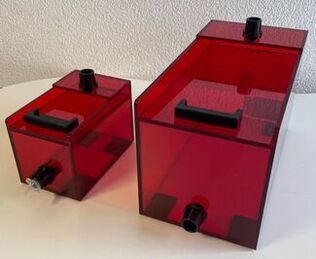

New x-small low stress Induction Chamber in red
Low stress. Rodents lack cone cells that sense red light and are insensetive to red light. The red transparent appereance is conevenient for the experimenter to observe the state of of the animal while reducing the stress response of the animal and reducing the impacton the biological rythm of the animal. Comply with animal welfare
The new induction chamber for mice is made from plexiglass-material, durable, easy to clean, convenient to observe the anesthetic state of animals. The size of the very small Induction Chamber is: 160 mm x 100 mm x 90 mm, suitable for one mice.
It comes with a gas in-outlet connector and a gas evacuation hose.
Order-Nr. PS V-108 (X-Small) low stress induction chamber
Size: 160 mm x 100 mm x 90 mm
Order-Nr. V105 Red (Standard) Induction chamber for mice
Size: 310×150×190mm
The Standard red Induction Chamber is for Mice and Rats
The new induction chamber for mice is made from plexiglass-material, durable, easy to clean, convenient to observe the anesthetic state of animals. The size of the very small Induction Chamber is: 160 mm x 100 mm x 90 mm, suitable for one mice.
It comes with a gas in-outlet connector and a gas evacuation hose.
Order-Nr. PS V-108 (X-Small) low stress induction chamber
Size: 160 mm x 100 mm x 90 mm
Order-Nr. V105 Red (Standard) Induction chamber for mice
Size: 310×150×190mm
The Standard red Induction Chamber is for Mice and Rats
|
|
|
Anesthesia Airpump
Anesthesia air pump can provide a stable source of air for animal anesthesia machines. It comes with On/Off Switch on cable. 220V
Order Nr. R510-29
|
Gas Evacuation Apparatus
The gas evacuation apparatus (GEA) was designed to safely and actively remove waste gas associated with everyday inhalation anesthesia. The GEA will accommodate waste gas supply from at least 5 masks. The new one has been upgraded with a wider range of exhaust flow, Low noise, and small size.
Order Nr. R546Pro
|
|
combi-vet® Oxygen concentrator 5 liter and 10 liter per minute
|
combi-vet® Cabinet drawer with new trolley
|
|
In addition, we have an oxygen concentrator of 5 l/pm and 10 l/pm available. It comes with a hose for connecting the anesthesia system with the oxygen concentrator
Oxygen concentrator Everflow 5 l/pm 220 V European edition Order-Nr. CV-81005 5 l/pm |
We have a new low-cost robust trolley RWD available, it comes with a cabinet drawer.
Order-Nr. R510-T |
|
|
